5-pin charging port, fit for E-43, E-53, M-66 R7, M-81, M-340, M-350, M-360, M-330, M-66X, M-65X upgraded e-bike models.
In order for Addriders to enjoy a better riding experience, and have a longer mileage. Ourbattery pack capacityhas increased to an astonishing960Wh (48V*20Ah), andthe sustainable driving range on a single charge has reached 125MILES (PAS1).
ApplyingSamsung’s latest high-capacity 21700 battery cell combination, this battery cell not only has a larger cell capacity (reaching 5000mha) but also the max discharge current has improved to reach 3C (Samsung 18650 2600mha is 2C). This means that it can better control the increase in temperature and provide greater protection for the overall safety of the battery.
The newly designed battery cell combination is connected to thenickel chipto maximize the area of its size to ensure better connection and maximum heat dissipation. The output terminal part also adds acopperelement to ensure the stability of the battery output.
We at Addmotor have designed a newintegrated battery assembly bracket. The battery alignment is now more reasonable and space-saving. The support system matches the protection module perfectly, providing the strongest protection for all components and can withstand huge external pressure. The design allows the fully automatic welding machine to complete the battery assembly with more correction, which eliminates individual defects and uncontrolled factors of manual welding from the old version.
Safety is a huge concern for us at Addmotor. As so, we have designed abattery protection templateexclusively to protect you and the battery. This battery offers unique dual protection of over-current charging and over-current discharging with triple protection of short-circuiting. This battery has both a unique charging high/low-temperature sensing protection function and discharging high/low-temperature sensing protection functions. Both charging and discharging MOS tubes are designed with dual protection circuits. Theadditional MOS tubesimprove the redundancy and ensure that the battery’s safety protection functions are doubled.
This battery utilizesgold-plated contact pinswhich have strong current passing performance, conductivity, and lower heat generation. The specially designed larger version can optimize the distance between positive and negative electrodes while increasing the volume; eliminating the generation of electric arcs. The base is composed of UL-certified materials, making the battery stronger and safer. The outer cover of the charging port adopts a magnetic automatic retorquing design, which is user-friendly and convenient. The charger head adopts a 7-shaped design, which is more practical when charging the bike.

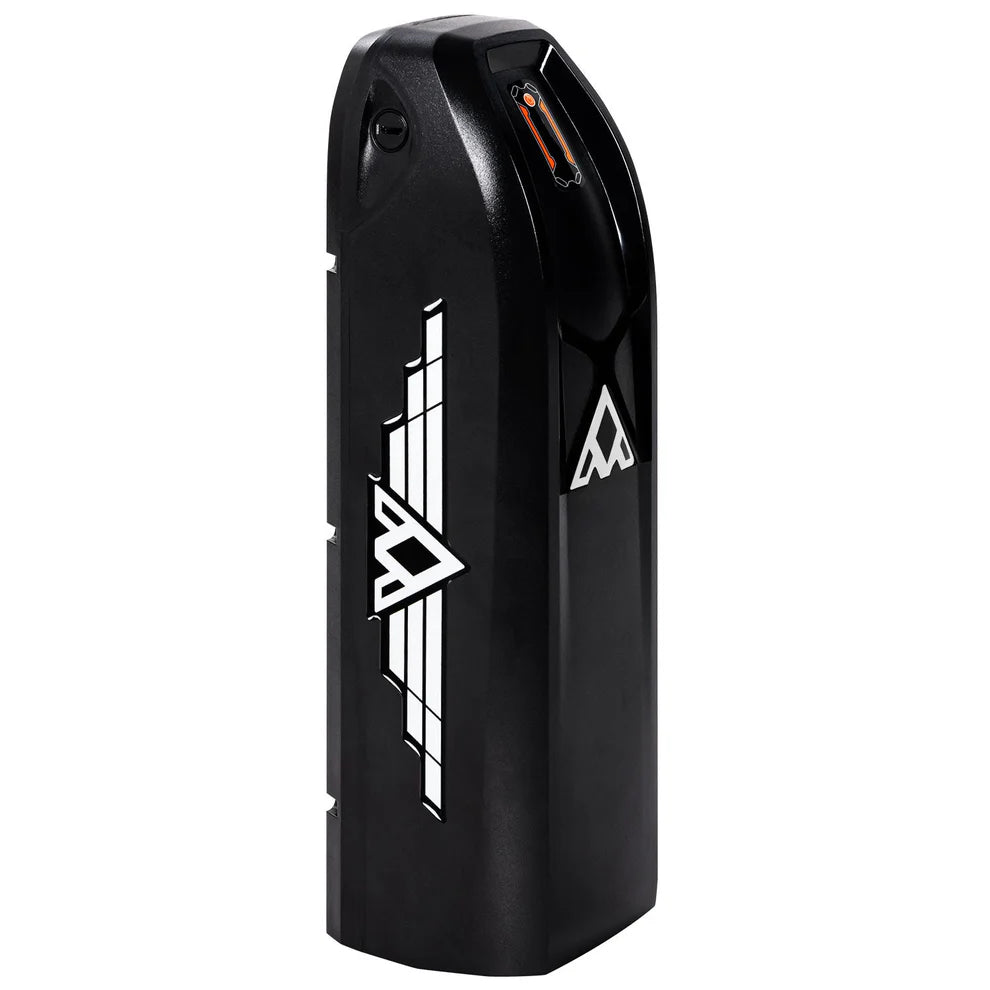

The battery casehas a much thicker case of 3.0MM with the thickest part being 3.5MM (30% thicker than the previous model). It is made of materials that comply with UL certification and can protect the battery.
The newly developed and customizedsnap lockensures that the battery is stably fixed on the bike body and the key can be pulled out when the lock is locked to avoid frequent contact with the rider’s legs when riding.
There is an external replaceablefuse holderat the bottom of the battery case, allowing you to replace the fuse if needed (In previous versions, you may have had to disassemble the entire b
