Intense M29 - Downhill
Intense M29 - Downhill
Intense M29 - Downhill
Intense M29 - Downhill
Intense M29 - Downhill
Intense M29 - Downhill
Intense M29 - Downhill
Intense M29 - Downhill
Intense M29 - Downhill
Intense M29 - Downhill
Intense M29 - Downhill
Intense M29 - Downhill
x

Intense M29 - Downhill

$7,299.00 $8,999.00


  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock
SPECS

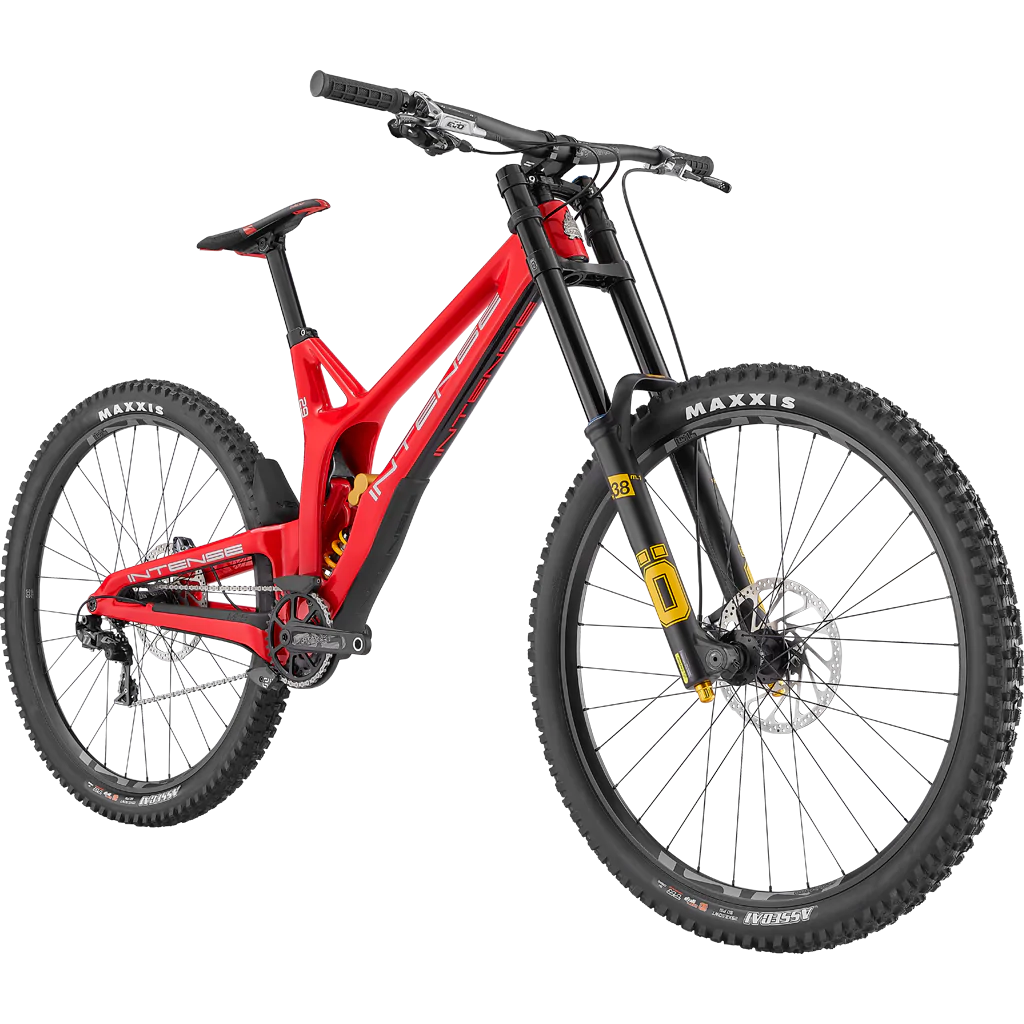

The M-Series of downhill bikes have unrivaled history and race heritage. It is an unbroken chain of evolution, from the original M1 back in 1994 right through to our current offering, the M29. This latest incarnation is the culmination of over 25 years of development, testing, tweaking, honing, and perfecting. The M-Series has moved with the times, and we can confidently say that the M29 is the best downhill bike we have ever made. The 2019-2022 INTENSE M29 frame is not compatible with the 2021-2022 Fox DHX2 Coil and Fox Float X2 rear shock due to space constraints within the frame and the new shock shape. The M29 takes its place amongst the greatest bikes we have ever made. It is the perfect continuation of the M-Series, and it’s a bike that will carve its own niche in the history of downhill mountain biking. Whether racing or just riding, when you drop in on the M29, you’ll be in for one hell of a ride.



DEVELOPED ON THE WORLD CUP CIRCUIT

We made our first 29” wheeled downhill bike way back in 2009, but it wasn’t until 2017, as 29” downhill specific components began to appear, that things got serious. That year INTENSE team riders Jack Moir and Dean Lucas both scored exceptional second place World Cup finishes on prototype M29s… it was on.

DESIGNED FOR THE MOST DEMANDING

Big 29” wheels help to carry vast amounts of speed and momentum and flatten terrain, so it was an easy choice for us. But, of course, the beating heart of any bike is the frame. The M29 uses a specific carbon lay-up to create a structure that is stiff and strong but has give in all the right places. Meaning you get a bike that allows you to take razor-sharp lines on the track without getting beaten up or having a harsh ride, which is hugely important for a downhill bike.

PROGRESSIVE LEVERAGE RATIO

The shock orientation gives off a supple and sensitive ride that initially absorbs small bumps, then seamlessly moves into a supportive mid-stroke platform (which helps to maintain ride height) and finally into a controlled ramp-up towards bottom-out. All this translates into a predictable ride that offers plenty of support, can tackle anything, and gives an endless grip in all situations.

THE JS TUNED DOWNHILL LINK

We talk about JS Suspension a lot here at INTENSE. JS stands for Jeff Steber (our founder and CEO); simply put, it is a sophisticated suspension system that uses two counter-rotating links to connect the front and rear triangles of the bike. The links are precisely placed to separate the pedaling and braking forces from the suspension performance. Every model in our range has its own personal and specific JS tune.



BUILD

FRAME
EXPERT
Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the Downhill category. Features fully guided Internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, threaded BB and molded frame protection. Concentric bottom link with integrated bearings. 208mm of rear wheel travel. Locking rear axle (157mm boost hub spacing)
PRO

Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the Downhill category. Features fully guided Internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, threaded BB and molded frame protection. Concentric bottom link with integrated bearings. 208mm of rear wheel travel. Locking rear axle (157mm boost hub spacing)
FORK


DVO ONYX DC D1 203mm air spring, AVA volume adjustment, low speed compression and low speed rebound adjustment, solid front axle with pinch bolts (110mm boost spacing)


Öhlins DH38, 200mm, dual air spring, compression and rebound adjustment, solid front axle with pinch bolts (110mm boost spacing)
SHOCK DVO Jade Coil High/Low speed compression, low speed rebound adjustable bladder, spring preload adjustment spring, shock size/stroke: 250mm x 70mm, Upper hardware; 8mm x 30mm, Lower Mounting Hardware: 8mm x 30mm


Öhlins TTX22M Coil,3 position high speed compression, low speed compression and rebound adjustment, Shock size/Stroke: 250mm x 70mm, Upper hardware: 8mm x 30mm, Lower Mounting Hardware: 8mm x 30mm
COIL

450 lbs (M Size for 64 - 73 kg rider weight) / 500 lbs (L Size for 73 - 80 kg rider weight) / 550 lbs (XL Size for 80 - 84 kgs rider weight).

450 lbs (M Size for 64 - 73 kg rider weight) / 500 lbs (L Size for 73 - 80 kg rider weight) / 550 lbs (XL Size for 80 - 84 kgs rider weight)
WHEELSET

e*Thirteen LG1 DH 30MM Alloy Rim / E Thirteen alloy hub/boost


e*Thirteen LG1 DH 30MM Alloy Rim / E Thirteen alloy hub/boost
HUBS

Front - e*Thirteen hub 32h 6-bolt rotor 110mmx20mm boost / Rear - E Thirteen hub 32h 6-bolt rotor HG driver body 157mm x 12mm boost


Front - e*Thirteen hub 32h 6-bolt rotor 110mmx20mm boost / Rear - E Thirteen hub 32h 6-bolt rotor Micro spline driver body 157mmx12mm boost
TIRES MAXXIS Assegai WT 3C Maxx Grip DH 29"X2.50" -Front/Rear


MAXXIS Assegai WT 3C Maxx Grip DH 29"X2.50" -Front/Rear
SHIFTERS SRAM GC 7SP


SRAM GX 7SP
REAR DERAILLEUR SRAM GX DH 7SP


SRAM GX DH 7SP
CRANK e*Thirteen Helix DH 36t. 165mm length, 55mm chainline


e*Thirteen Helix DH 36t. 165mm length, 55mm chainline
CASSETTE

e*Thirteen Helix DH 36t. 165mm length, 55mm chainline


e*Thirteen Helix DH 36t. 165mm length, 55mm chainline
CHAIN

SRAM PC 1110 7SP 108 Links

SRAM PC 1110 7SP 108 Links
BOTTOM BRACKET e*Thirteen Threaded


e*Thirteen Threaded
SADDLE SDG I-FLY 2.0, I-Beam Rail


SDG I-FLY 2.0, I-Beam Rail
SEATPOST SDG I-Beam Alloy, 31.6mm/300mm


SDG I-Beam Alloy, 31.6mm/300mm
HANDLEBAR INTENSE Recon 35mm, 20mm ride, 800mm width

e*Thirteen alloy 35mm, 30mm rise, 800mm width
STEM INTENSE DH Stem, 35mm, 50mm length

INTENSE DH Stem, 35mm, 50mm length
HEADSET Cane Creek 40 Top ZS49/28.6mm, Bottom ZS56/30 Cane Creek 40 Top ZS49/28.6mm, Bottom ZS56/30
BRAKESET

SRAM Code R 4-piston Rotors: 200mm 6-bolt 1.8mm Front/Rear

TRP DH-R EVO, 4-piston caliper - TRP RS01E - 203mm/2.3mm rotors Front & Rear
GRIPS INTENSE Logo Lock-On INTENSE Logo Lock-On
